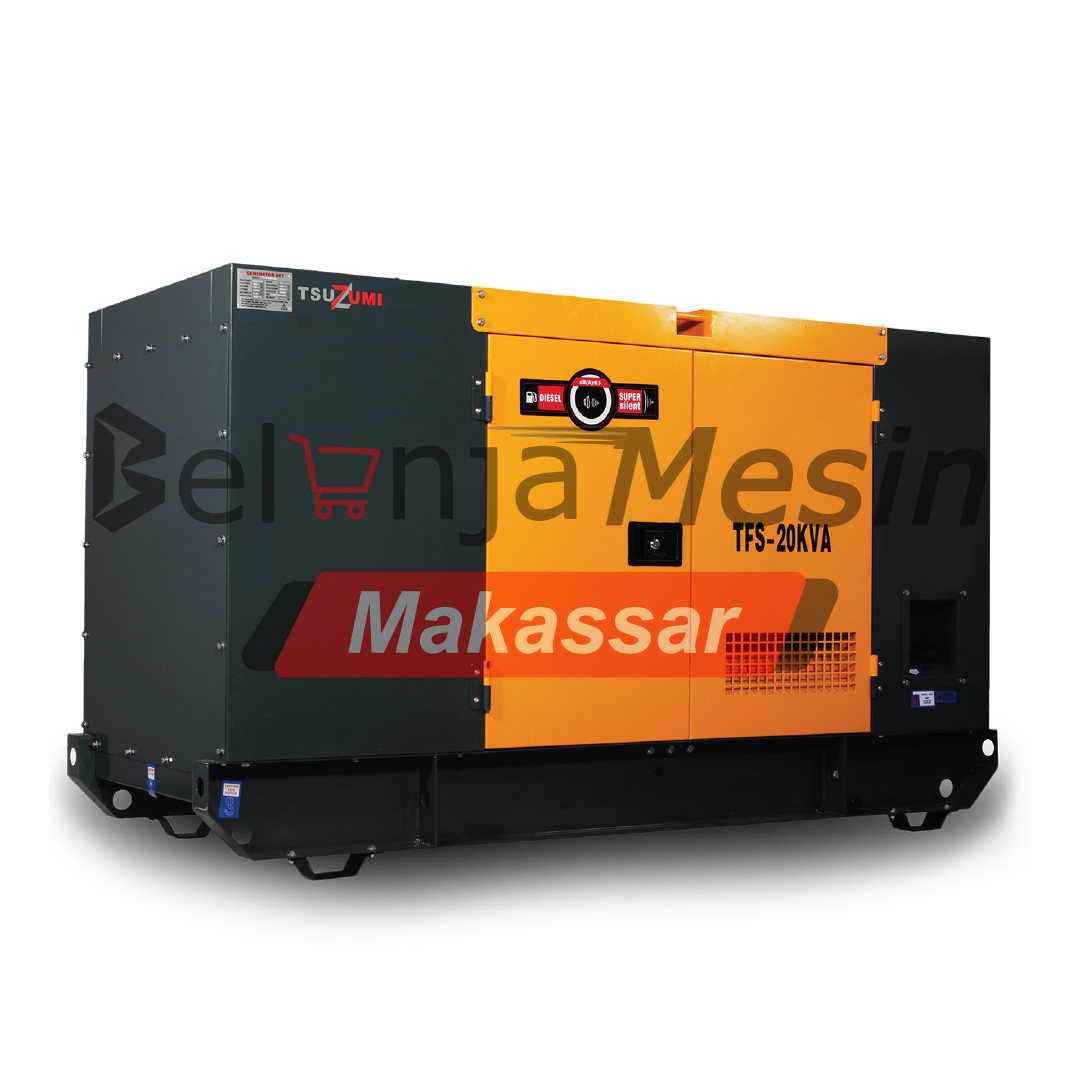

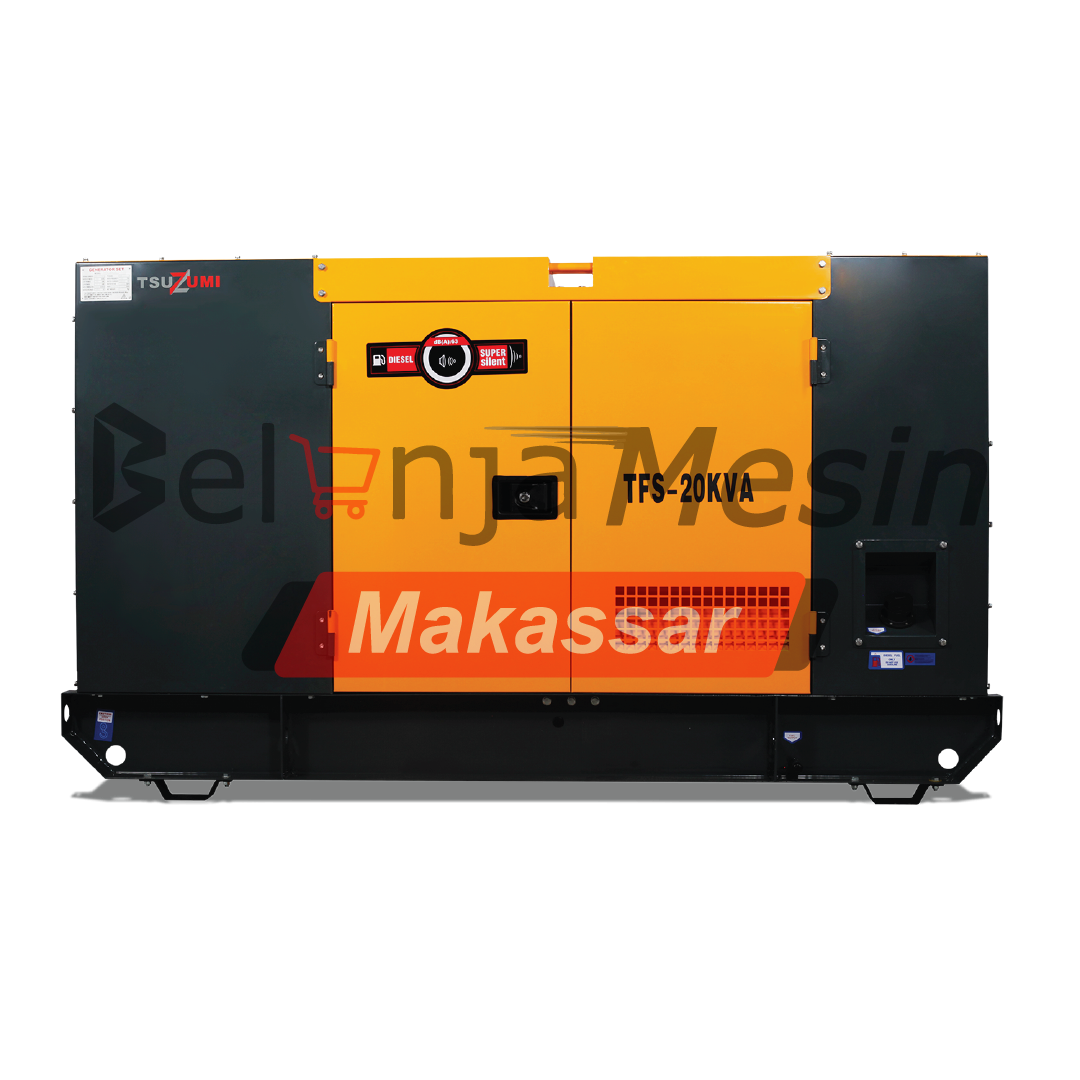

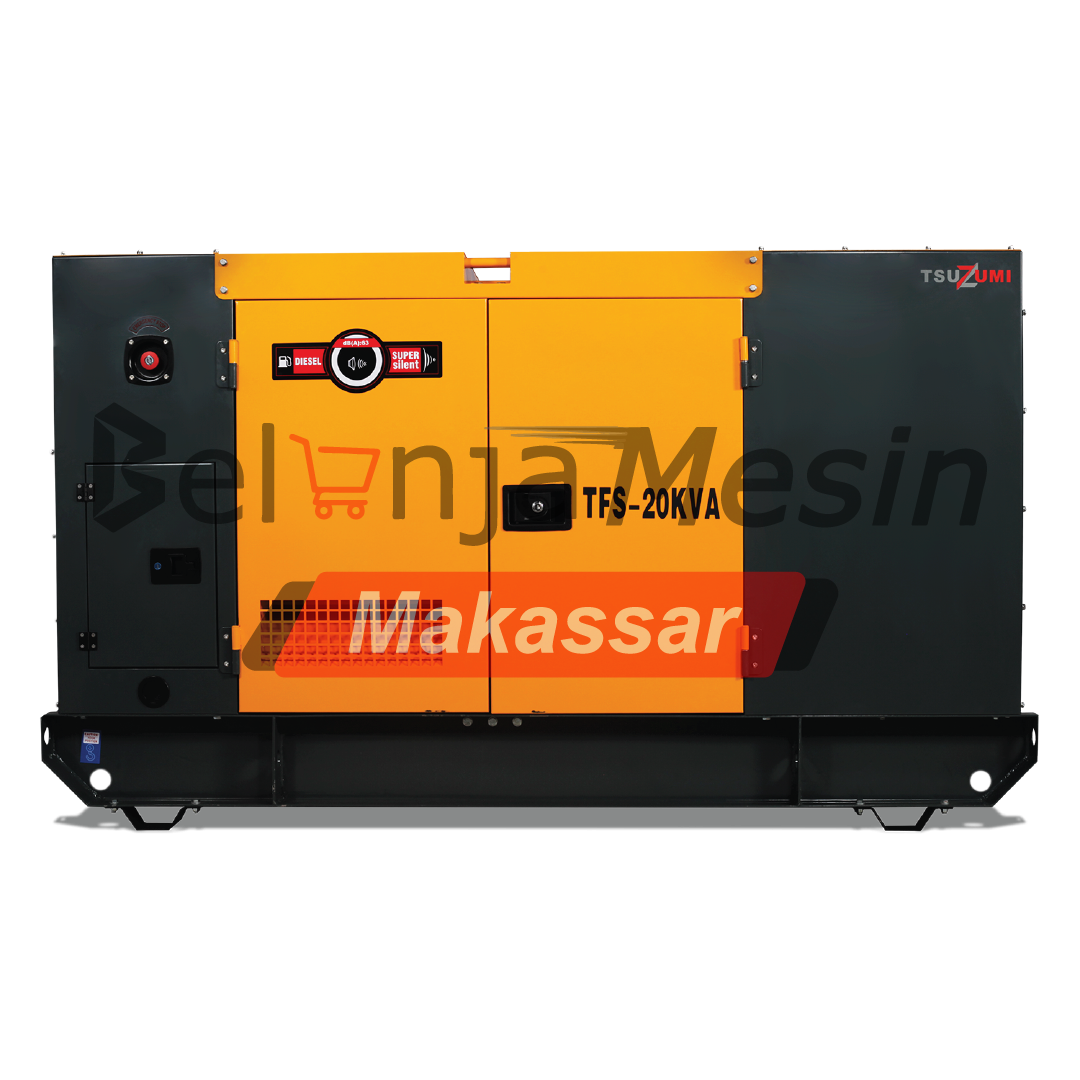

Genset Silent Diesel 20 KVA 16 KW IP23 TFS 20 KVA Tsuzumi
Tsuzumi TFS 20 kva merupakan genset type silent diesel yang di lengkapi dengan engine FAWDE.Body yang kokoh, genset ini juga memiliki proforma mesin yang handal.
Rp 79.500.000
Product Info
Spesifikasi Produk:
Genset silent STAMFORD original
Type: TFS-20 KVA
Rated output (kva/kw) : 20 /16
Standby output (kva/kw): 22 17.6
Volt: 380

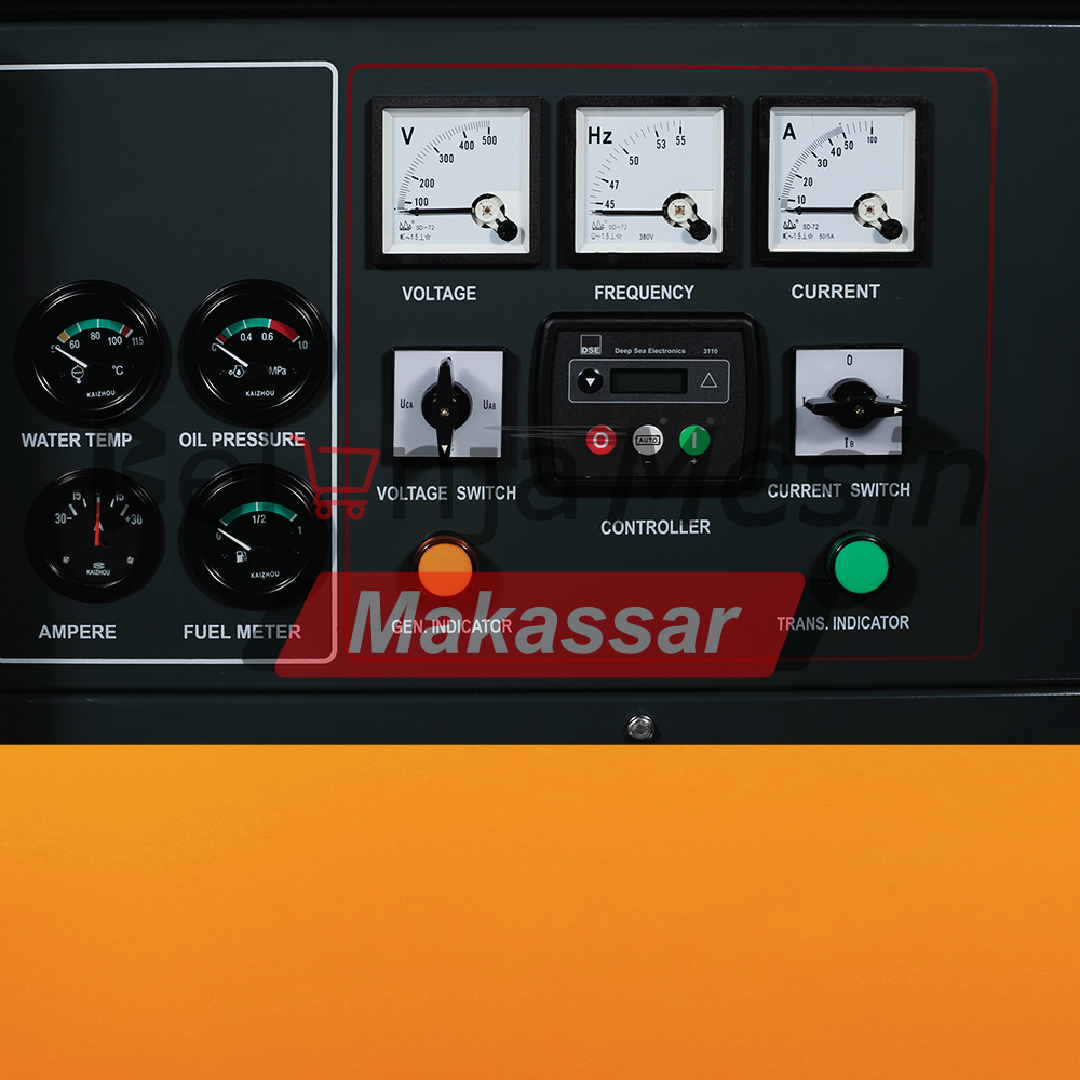

Controller : Deepsea 3110
Battery type: maintenance free
Engine type: 4cylinder watercooling
Governor mode: mechanical
Bore*stroke 90*100
Compression ratio: 17,5:01
Rated speed (rpm): 1500
Displacement (L):2.54
Fuel consumption (g/kwh): 230
Oil consumption (L/h): 0.05
Oil capacity including filter (L): 8
Steady state speed regulation (%): <3
Emission compliant: Stage II
Manufactured /Type : STAMFORD / PI144D
Voltage / frequency / factor: 380 v 3 phase, 50 HZ, cosp 0.8
Insulating grade : H
Protection grade : IP23
Packing size (mm): 2180 * 880 * 1280
Weight(kg) : 760
keunggulan:
– Super heavy duty generator
– Full power 100 % can test load
– Menggunakan module Deepsea
– Silent type sound proof built up ( suara halus, silent box kokoh, cocok untuk outdoor )
– Dilengkapi COO ( certificate of original )
| Specification | Value |
|---|---|
| Phase | 3 Phase |
| Frequency | 50 Hz |
| Genset Power | 16 kw |
| Rated Power | 20 Kva |
| Max Power | 22 Kva |
| Rated AC Voltage | 380 volt |
| Starting Method | Electric |
| Fuel Consumption | 5L/Hr |
| Weight | 7600 |
| Dimensions | 218 x 88 x 128 cm |
